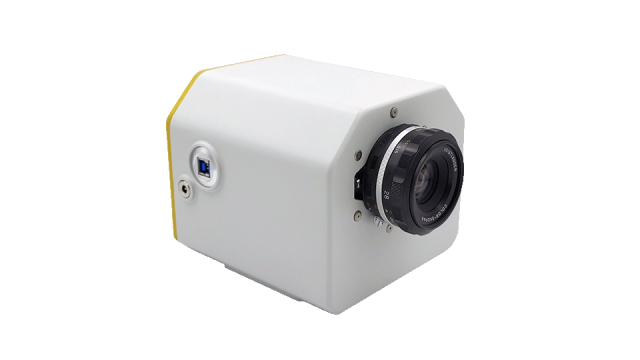

Feaures & specifications
- Broad spectral range of approximately 365 – 1700 nm, covering UV, VIS, NIR and SWIR wavelengths.
- Dual-sensor architecture (Silicon + InGaAs) enabling continuous coverage across that broad range.
- Around 12 selectable spectral bands in the standard configuration (6 bands per sensor in some data sheets) with configurable options.
- High light throughput of about 90% (polarization independent) for the spectral filter/filtering system.
- Spatial resolution per band: e.g., Si sensor ~6.4 MP (3096 × 2080) for visible range; InGaAs side somewhat lower resolution (e.g., 640 × 512 as per one spec sheet) in SWIR.
- Full spectral cube scanning time around ~10 s (exposure-limited) in one configuration.
- Supports multiple imaging modes: reflection, fluorescence, transmission.
- Standard lens mount (F-mount or C-mount depending version) for compatibility with common optics.
- Interface: 12-bit dynamic range indicated; USB3.0 interface in one spec sheet.
- Weight around ~1.85 kg in one configuration.
- Supplied with a software platform for camera control, calibration, pixel-level spectroscopy and spectral classification mapping.
Applications
- Precision agriculture: monitoring plant health, water content, nutrient status and stress detection using the broad spectral coverage (UV-VIS-NIR-SWIR).
- Remote sensing / aerial imaging: deployable in UAV or airborne systems thanks to wide spectral range and dual‐sensor design.
- Cultural heritage / artwork & archaeology: pigment mapping, art conservation, material characterization using UV to SWIR imaging.
- Forensics and materials inspection: non-destructive analysis of materials, coatings, contamination using the full spectral range.
- Food sorting, plastics/mineral sorting and industrial quality control: using spectral signatures across UV‐SWIR to differentiate materials.
- Biomedical & life-sciences imaging: tissue diagnostics, small animal imaging leveraging the extended spectral range.
